HP-PU Small current range / PCB-mounting type

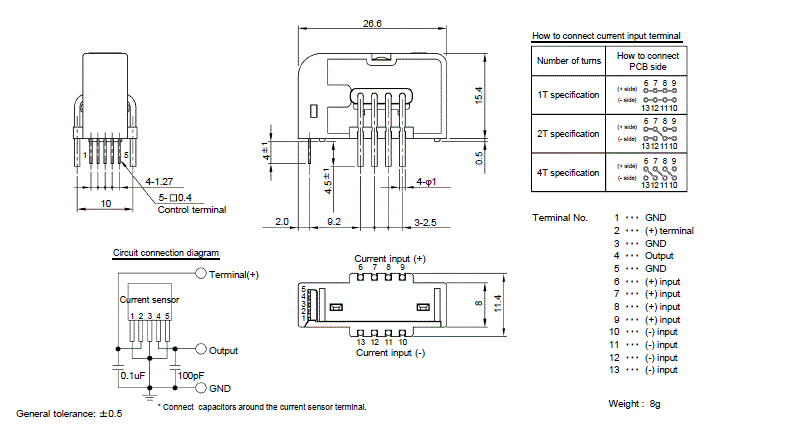

Dimensional outline drawing

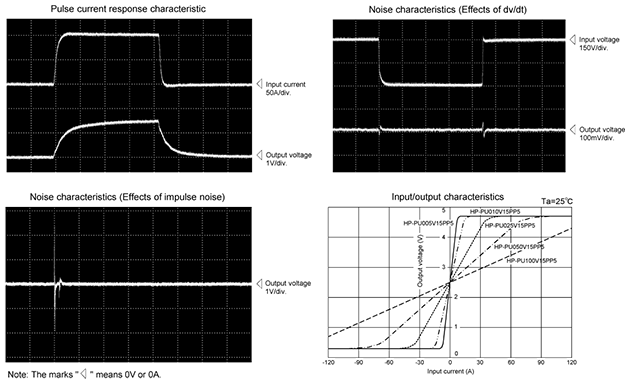

Characteristics charts
Features
- Rated current: 5A–100A
- Compact and small mounting area by application of Hall IC
- Excellent in temperature characteristics by incorporating temperature compensation
- Superior noise-resistance
Applications
Inverters, Servo drivers, Power supply equipment, Uninterruptible power supply (UPS), NC machine tools, Welders
Electrical characteristics Ta=25℃
| Type | HP-PU 005V15PP5 |
HP-PU 010V15PP5 |
HP-PU 025V15PP5 |
HP-PU 050V15PP5 |
HP-PU 100V15PP5 |
|---|---|---|---|---|---|
| Rated current [If] | ±5A | ±10A | ±25A | ±50A | ±100A |
| Continuously flowing DC current | ±5A | ±10A | ±25A | ±50A | ±55A |
| Saturation current [Is] | ±7.3A | ±14.6A | ±36.5A | ±73A | ±146A |
| Linearity limits | 0～±6.5A | 0～±13A | 0～±32.5A | 0～±65A | 0～±130A |
| Number of current input terminal turns | 4 | 4 | 2 | 1 | 1 |
| Rated output [Vh] | V0±1.5V×(Vcc/5)±3.5% | V0±1.5V×(Vcc/5) ±2.5% |
|||
| Residual output [V0] | Within (Vcc/2)±40mV | Within (Vcc/2)±35mV | Within (Vcc/2)±30mV | ||
| Output linearity | Within ±1% | ||||
| Response time | Within 10μs (at di/dt=If/μs) | ||||
| Response performance | Within 10% | ||||
| Hysteresis voltage range | Within 80mV | Within 75mV | Within 70mV | Within 50mV | |
| Output Temp. Coef. | Within ±0.05%/℃ | ||||
| Residual output Temp. Coef. | Within ±0.75mV/℃ | Within ±0.65mV/℃ | Within ±0.6mV/℃ | Within ±0.3mV/℃ | |
| Control power supply | +5V±5% | ||||
| Consumption current | Within 15mA | ||||
| Operating Temp. | -40℃～+85℃ | ||||
| Storage Temp. | -40℃～+85℃ | ||||
| Dielectric withstand voltage | 2500V AC 50/60Hz 1minute | ||||
| Insulation resistance | Not less than 500MΩ 500V DC | ||||
- Note1）
- The indicated residual output is the one after the core hysteresis is removed.
- Note2）
- The output specification is the maximum output current 0.5mA or less, load capacity 100pF or less.
- Note3）
- The rated output and residual output vary with the value of the control power because they are ratiometric outputs.
- Note4）
- Connect to the board at the specified number of turns. A different number of turns will result in an output error.
