HC-TS Medium current range / Bolt on type

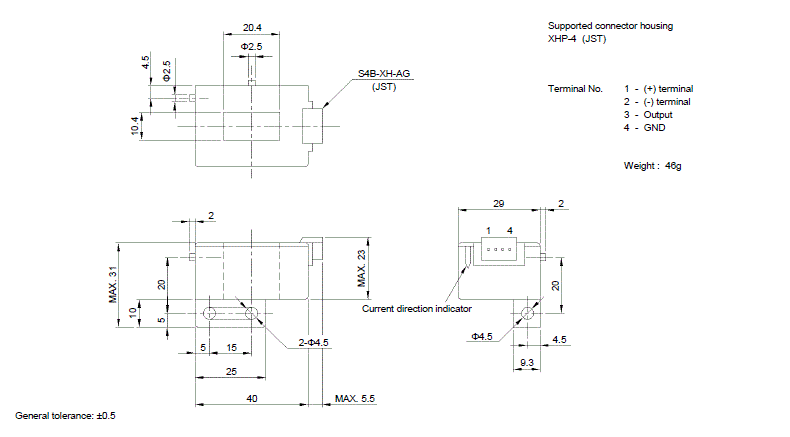

Dimensional outline drawing
Characteristics charts
Features
- Rated current: 50A–800A
- Superior noise-resistance
- Single-power supplies also available
Applications
Inverters, Servo drivers, Power supply equipment, Uninterruptible power supply (UPS), NC machine tools, Welders
Electrical characteristics Ta=25℃
| Type | HC-TS 050V4B15 |
HC-TS 100V4B15 |
HC-TS 300V4B15 |
HC-TS 600V4B15 |
HC-TS 800V4B15 |
|---|---|---|---|---|---|
| Rated current [If] | ±50A | ±100A | ±300A | ±600A | ±800A |
| Saturation current [Is] | ±150A | ±300A | ±900A | ±1000A | ±1000A |
| Linearity limits | 0～±150A | 0～±300A | 0～±700A | 0～±900A | 0～±900A |
| Rated output [Vh] | ±4V±1.5% (RL=10kΩ) | ±4V±1% (RL=10kΩ) | |||
| Residual output [V0] | Within ±50mV | Within ±30mV | |||
| Output linearity | Within ±1% | ||||
| Response time | Within 10μs (The smaller one on either at di/dt = 100A/μs or If/μs.) | ||||
| Response performance | Within 10% | ||||
| Hysteresis voltage range | Within 30mV | ||||
| Output Temp. Coef. | Within ±0.1%/℃ | ||||
| Residual output Temp. Coef. | Within ±3mV/℃ | Within ±1.5mV/℃ | Within ±1mV/℃ | ||
| Control power supply | ±15V±5% | ||||
| Consumption current | Within 30mA | ||||
| Operating Temp. | -10℃～+80℃ | ||||
| Storage Temp. | -15℃～+85℃ | ||||
| Dielectric withstand voltage | 2500V AC 50/60Hz 1minute | ||||
| Insulation resistance | Not less than 500MΩ 500V DC | ||||
- Note1）
- The indicated residual voltage is the one after the core hysteresis is removed.
