HA-A Clamp type AC-CT

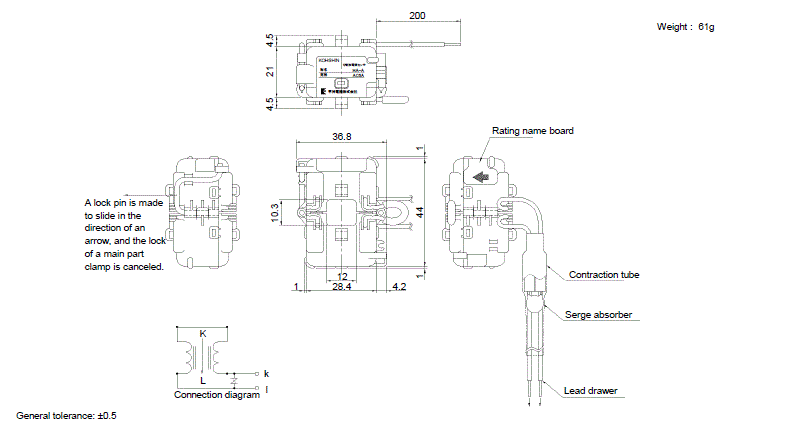

Dimensional outline drawing

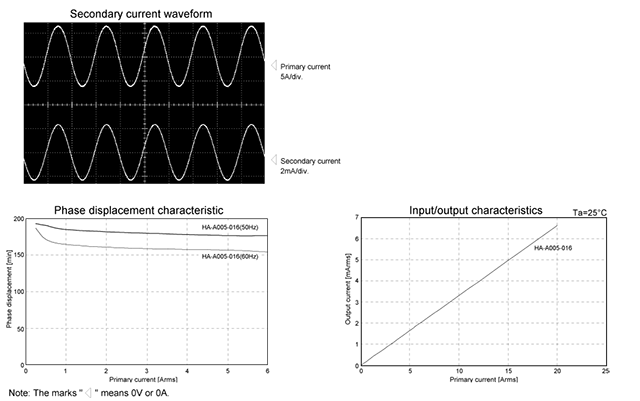

Characteristics charts
Features
- Rated primary current: 5A
- Suitable for energy measurement which is more less dispersion in ratio error and phase displacement
- Symmetrical divided core prevents influence of external magnetic field
- Excellent frequency characteristics enabling pulse current measurement
- Simple mounting for exiting panel which is clamp type
Applications
Energy measurement unit, Transmit detection of apparatus, Signal detection
Electrical characteristics Ta=25℃
| Type | HA-A005-016 |
|---|---|
| Rated primary current [If] | 5A |
| Measuring bound | 0.25～5Arms |
| Frequency | 45～65Hz |
| Saturation current [Is] | 25A |
| Rated secondary current | 1.67mArms |
| Ratio error | ±1% (RL=10Ω) |
| Dispersion in phase displacement | ±30minute (0.1If～If RL=10Ω) ±45minute (0.05If RL=10Ω) |
| Operating Temp. | -10℃～+55℃ |
| Storage Temp. | -20℃～+60℃ |
| Dielectric withstand voltage | 1000V AC 1minute |
| Insulation resistance | Not less than 100MΩ 500V DC |
| Others | Internal output protection circuit |
