HP-PGA Small-sized, Medium current range / PCB-mounting type
Dimensional outline drawing

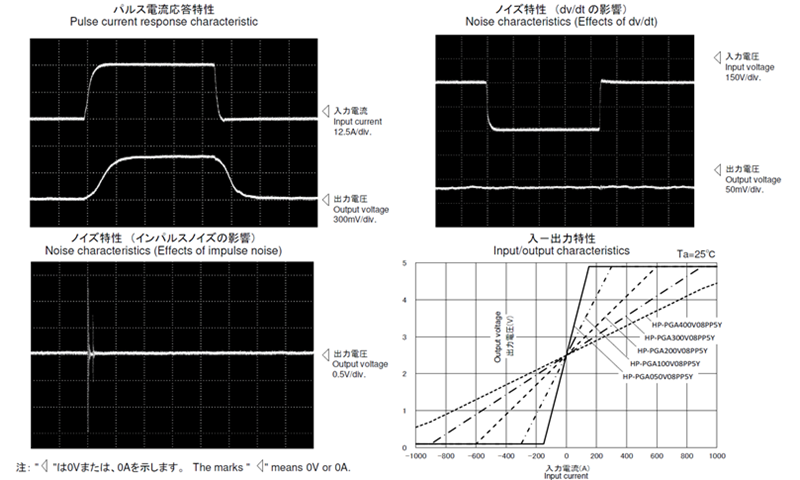

Characteristics charts
Features
- Rated current ・・・ 50A ～ 400A
- Hall IC with 5V single power supply specification
Applications
Inverters
Detailed data
Electrical characteristics Ta=25℃
| Type | HP-PGA050V08PP5Y | HP-PGA100V08PP5Y | HP-PGA150V08PP5Y | HP-PGA200V08PP5Y | HP-PGA300V08PP5Y | HP-PGA400V08PP5Y |
|---|---|---|---|---|---|---|
| Rated current [If] | ±50A | ±100A | ±150A | ±200A | ±300A | ±400A |
| Saturated current [Is] | ±131A | ±262A | ±393A | ±525A | ±787A | ±900A |
| Linearity limits | 0～±125A | 0～±250A | 0～±375A | 0～±500A | 0～±750A | 0～±800A |
| Rated Output span voltage [Vh] | V0±0.8V±1.2% (RL=10kΩ) | |||||
| Electrical offset voltage [V0] | ±10mV (I=0, Vout-Vref) | |||||
| Internal reference output voltage [Vref] | +2.5V±20mV | |||||
| External reference input voltage [Vref] | +0.5V～+2.65V | |||||
| Hysteresis voltage range | Within 10mV | |||||
| Linearity of output span voltage [at 0～If] | Within ±0.5% | |||||
| Control power supply [Vcc] | +5V±5% (Output voltage fluctuation Within ±1%） | |||||
| Consumption current | Within 20mA | |||||
| Response time | Within 5μs (If<100A : di/dt = If/μs, If≧100A : 100A/μs) | |||||
| Transient characteristic | Within 10% (If<100A : di/dt = If/μs, If≧100A : 100A/μs) | |||||
| Temp. coefficient of output span voltage | Within ±200ppm/℃ (Excluding the electrical offset voltage) | |||||
| Temp. coefficient of electrical offset voltage | Within ±0.1mV/℃ | |||||
| Temp. coefficient of reference output voltage | Within ±200ppm/℃ | |||||
| Dielectric withstand voltage | AC4000V 60Hz for 1 minute (All control terminal pins ←→ Inner surface of through hole for primary current） | |||||
| Insulation resistance | Not less than 500MΩ DC 500Vmegger (All control terminal pins ←→ Inner surface of through hole for primary current） | |||||
| Operating Temp. | -40℃～+105℃ | |||||
| Storage Temp. | -40℃～+105℃ | |||||
- Note1）
- Electrical offset voltage [V0] is the value after core demagnetization.
- Note2）
- The temperature characteristic indicates the maximum variation within the operating temperature range divided by the temperature range.
- Note3）
- The accuracy is obtained when the Reference output voltage is used. If the Reference output voltage is not used, it is necessary to include in the calculation the error in the Reference output voltage and the Temperature coefficient of reference output voltage.
- Note4）
- Please note that if stored in high humidity environment, the output may fluctuate.
